Basic info of linear actuator
| Item name | linear actuators |
| Max. stroke | 1000MM |
| Max. Static load | 12000N |
| Max. Dynamic load | 12000N |
| Operation Speed | 6.5 mm/sec/12000N |
| Input Signal | 3.3VDC, 5VDC |
| Position Detection | Hall sensor(s)/ Potentiometer |
| Motor | Brushed DC motor |
| Degree of Protection | IP65 |
| Screw Type | Trapezoidal screw |
| Power Input | 24V/12VDC |
| Self-locking ability | NO |
| Operating temperature | -35℃~65℃ |
| Safety nut | NO |
| Optional 1 | Cable length |
| Optional 2 | Feedback (POT /hall sensor) |
| Optional 3 | Installation size |
Features of linear actuator
- Widely work for different applications
- Easy Install
- Low maintenance
- High Stiffness/ High Strength
- Steady Speed
Where can use linear actuator:
Various agricultural machinery.
Various equipment that needs to lift up a load: Such as Medical instruments and vehicular installations.
Various constructions used for hanging a load: Such as lightweight hoisting machines.
To be used under undesirable weather conditions: Waterproof, Dustproof.
If you're looking for electric components, a key rating to look for is the IP rating,
you will find specifications indicating IP65, IP66, etc
These show that the linear actuator is suitable for many conditions you will encounter outdoors.
Finished linear actuators
Load & Speed of Industrial Linear Actuator
| Product mode | Max load(N) | Speed (mm/s) |
| HB-DJ805 linear actuator | 12000 | 6.5 |
| 10000 | 13 |
| 7000 | 17 |
| 6500 | 20 |
| 5000 | 25 |
| 3200 | 38 |
Newton (N) to Pound (lbs)
| Newton | 12000N | 10000N | 6000N | 4000N | 3000N | 2000N | 1500N | 800N |
| LBS | 2646 | 2200 | 1350 | 881 | 661 | 440 | 330 | 176 |
How do I select electrical actuators?
There are many factors to consider when selecting a linear actuator for an application need.
Some of these important parameters are mentioned below:
- Stroke length (travel length)
- Installation length
- Mounting requirements
- Feedback
- Motor voltage
- Dynamic load
- Static load
- Speed
Application of Industrial Linear Actuators:
- Farming Machine
- Snowblower
- Smoke Exhaust Equipment
- Automatic Door
- Automation Equipment
- Auto Solar Panel Tracking System
- Wheelchair Lifting
- Electric Lift Bed
You have questions. We have answer!
To best serve you and to identify the most appropriate contact for your needs, please inform us of your requirements on the linear actuator.
For Service, Parts or Warranty questions on the linear actuator, we encourage customers to contact with the sales team.
Please scan my WECHAT Or add my WHATSAPP
+86 18762658863
|
|

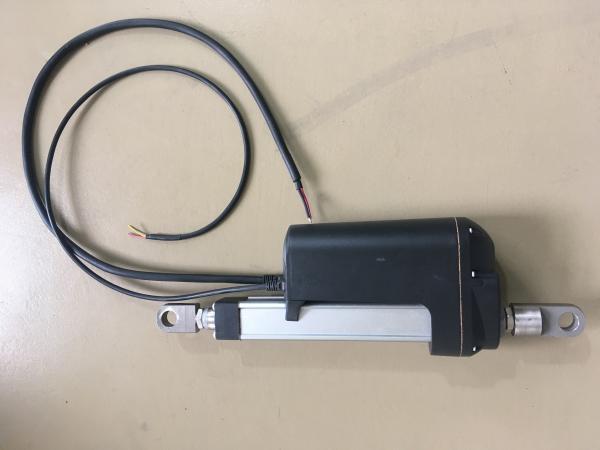

waterproof dc linear actautor 12volt dc motor for boat and operated excavator, 350mm travel 1000KG force Images
|
